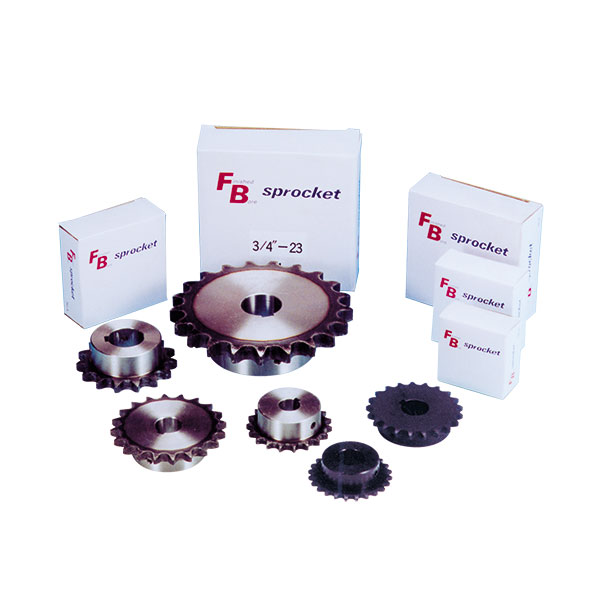

Product Details
參數介紹：
B-臺式鏈輪；“50-1”中的1代表S-Single單排；FB代表成品孔；歐標用毫米（Metric，mm），美標用
英寸（Inches，”）。
編號示例：
FB35B09H-FB35B72，表示：鏈號為35的臺式成品孔，齒數范圍從9至72，H代表齒部淬火。
產品范圍：
系列標準 | 產品形式 | 尺寸范圍（齒數或孔徑等） |
歐標 | 06B,Pitch9.525mm | 10-30 |
08B,Pitch12.70mm | 10-30 |
10B,Pitch15.875mm | 10-25 |
12B,Pitch19.05mm | 10-25 |
16B,Pitch25.40mm | 11-25 |
20B,Pitch31.75mm | 9-20 |
美標 | 35-1 For 3/8"Pitch | FB35B09H-FB35B72 |
40-1 For 3/8"Pitch | FB40B09H-FB40B96 |
41-1 For 3/8"Pitch | FB41B09-FB41B60 |
50-1 For 5/8"Pitch | FB50B09H-FB50B96 |
60-1 For 3/4"Pitch | FB60B09H-FB60B96 |
80-1 For 1"Pitch | FB80B09H-FB80B60 |
100-1 For 1 1/4"Pitch | FB100B08H-FB100B25H |
美標樣本:
FB成品孔鏈輪-美標.pdf
歐標樣本:FB成品孔鏈輪-歐標.pdf
