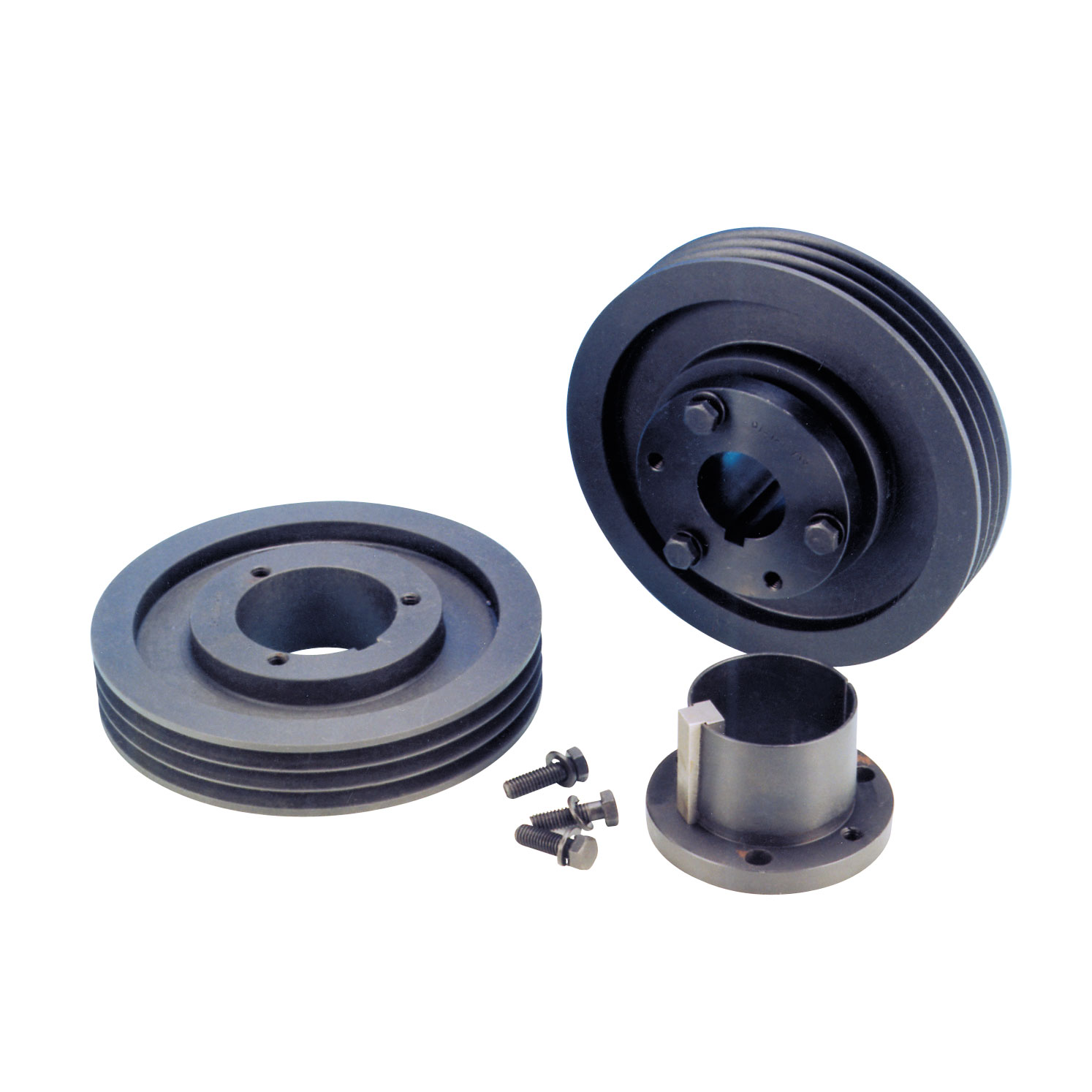

STL 3V-5V-8V V-pulleys

Range of product: ANSI:(3V-2/3V-3/3V-4/3V-5/3V-6/3V-8/ 3V-10/5V-2/5V-3/5V-4/5V-5/5V-6/ 5V-8/5V-10/8V-4/8V-5/8V-6/8V-8/ 8V-10/8V-12/8V-14/8V-16) Inch size product (Apply to ANSI market) STL 3V-5V-8V V-pulleys

Contact Us

Product Details

Parameters Introduction：

NSPT 3V-5V-8V series of pulleys with maximum 50" outside diameter and maximum 12 grooves can be

respectively suitable for bushes of BTL, QTL and STL series.

NSPT is capable of designing and producing non-standard pulleys based on customers' needs.

Product range：

Standards	Series Type	SizeRange
ANSI	3V-2	2-G3V26至2-Q3V250
	3V-3	3-G3V26至3-R3V335
	3V-4	4-G3V26至4-R3V335
	3V-5	5-P3V47至5-R3V335
	3V-6	6-Q3V47至6-R3V335
	3V-8	8-Q3V47至8-S3V335
	3V-10	10-Q3V47至10-S3V335
	5V-2	2-P5V44至2-R5V280
	5V-3	3-P5V44至3-U5V500
	5V-4	4-P5V44至4-U5V500
	5V-5	5-Q5V46至4-U5V500
	5V-6	6-Q5V71至6-U5V500
	5V-8	8-Q5V71至8-U5V500
	5V-10	10-R5V80至10-U5V500
	8V-4	4-S8V125至4-U8V640
	8V-5	5-S8V125至5-U8V640
	8V-6	6-S8V125至6-U8V640
	8V-8	8-S8V125至8-U8V640
	8V-10	10-U8V125至10-W8V640
	8V-12	12-U8V125至12-W8V640
	8V-14	14-U8V125至14-W8V640
	8V-16	16-U8V125至16-W8V640

ANSI Catalog：ANSI STL 3V-5V-8V V-pulleys.pdf
